Graphite & Carbon products we produce
Molded graphite

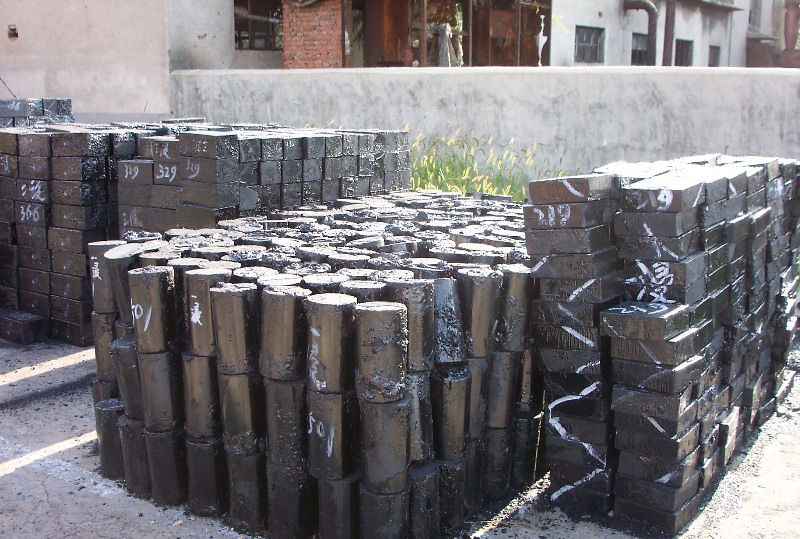

We produce four types of molded graphite: double impregnated triple baked blocks, triple impregnated quadruple baked blocks, double impregnated triple baked rods, triple impregnated quadruple baked rods. Our molded graphite is widely used in the applications of
- Electrical and semiconductor industry
- Heat treatment in industrial furnace
- Sintering mold of diamond tools
- Non-ferrous me
tallurgy and processing - Mechanical industry
- EDM

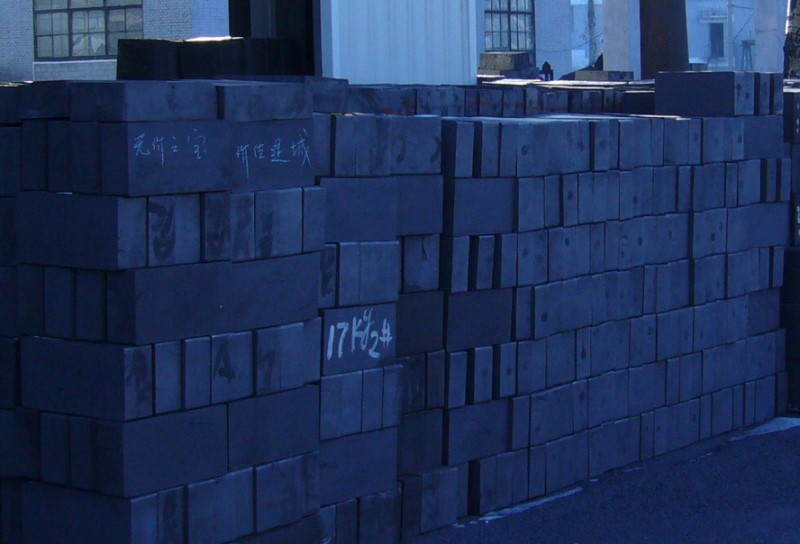

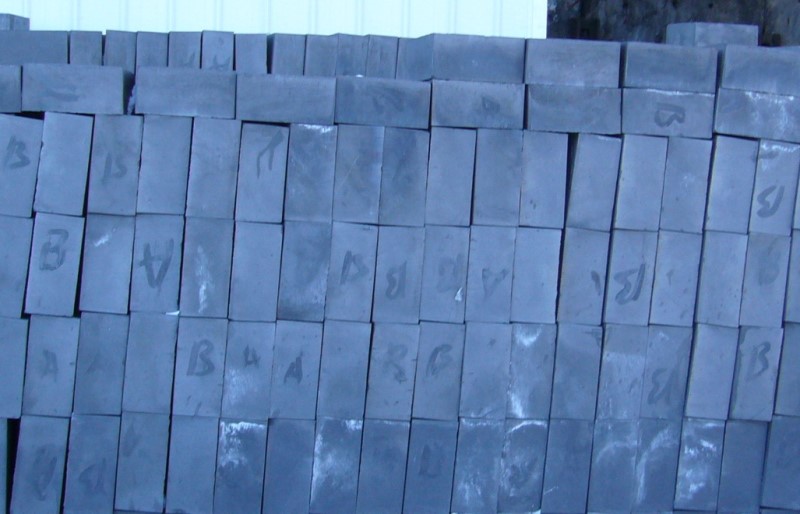

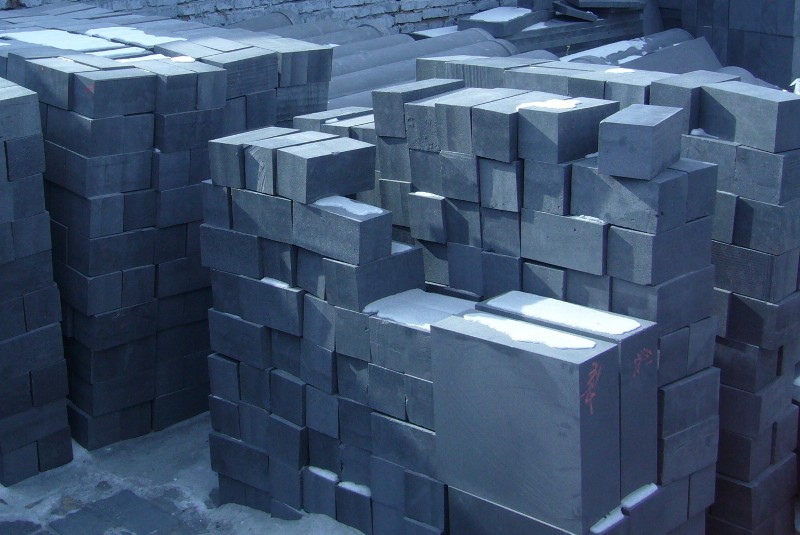

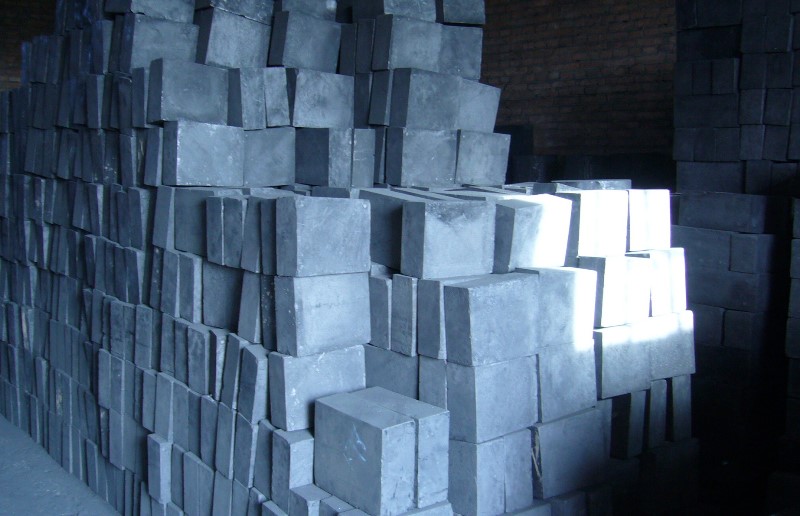

Molded graphite blocks, double impregnated, triple baked
|
Size (mm) |
Bending strength≥(Mpa) |
Compressive strength≥(Mpa) |
Resistivity ≤(μ Ω m) |
Ash≤(%) |
Bulk density ≥(g/cm3) |
|
210*210*60/90 |
30 |
60 |
10 |
0.1 |
1.80 |
|
250*130*100 |
30 |
60 |
10 |
0.1 |
1.80 |
|
280*140*100 |
30 |
60 |
10 |
0.1 |
1.80 |
|
280*280*110 |
30 |
60 |
10 |
0.1 |
1.80 |
|
300*200*120 |
30 |
60 |
10 |
0.1 |
1.80 |
|
310*310*150/160/180 |
30 |
60 |
10 |
0.1 |
1.80 |
|
320*120*120/200 |
30 |
60 |
10 |
0.1 |
1.80 |
|
320*200*100/120 |
30 |
60 |
10 |
0.1 |
1.80 |
|
320*270*100/120 |
30 |
60 |
10 |
0.1 |
1.80 |
|
330*130*110/300 |
30 |
60 |
10 |
0.1 |
1.80 |
|
330*220*110/130/300 |
30 |
60 |
10 |
0.1 |
1.80 |
|
330*260*160/180/200 |
30 |
60 |
10 |
0.1 |
1.80 |
|
350*150*85 |
30 |
60 |
10 |
0.1 |
1.80 |
|
360*160*120/300/320 |
30 |
60 |
10 |
0.1 |
1.80 |
|
370*280*120/150/160 |
30 |
60 |
10 |
0.1 |
1.80 |
|
380*300*95*105 |
30 |
60 |
10 |
0.1 |
1.80 |
|
380*350*160/180/200 |
30 |
60 |
10 |
0.1 |
1.80 |
|
60 |
10 |
0.1 |
1.80 |
||
|
Φ106/110*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ135/150*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ120/125*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ120/135*160 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ130/160*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ160/175*260 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ180/200*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ210/225*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ250*300 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ240*410 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ300/330*250 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ350*250/220 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ450*380 |
30 |
60 |
10 |
0.1 |
1.80 |
|
Φ480*380 |
30 |
60 |
10 |
0.1 |
1.80 |

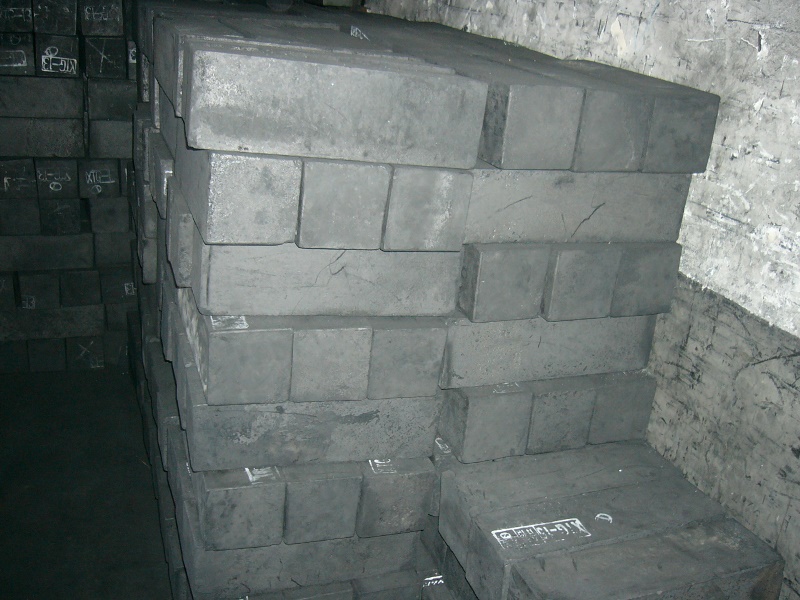

Molded graphite blocks, triple impregnated, quadruple baked
|
Size (mm) |
Bending strength≥(Mpa) |
Compressive strength≥(Mpa) |
Resistivity ≤(μ Ω m) |
Ash≤(%) |
Bulk density ≥(g/cm3) |
|
210*210*60/90 |
37 |
78 |
10 |
0.1 |
1.85 |
|
300*200*120 |
37 |
78 |
10 |
0.1 |
1.85 |
|
380*300*95/105 |
37 |
78 |
10 |
0.1 |
1.85 |
|
370*280*120/160 |
37 |
78 |
10 |
0.1 |
1.85 |
|
410*410*310 |
37 |
78 |
10 |
0.1 |
1.85 |
|
430*135*105/135 |
37 |
78 |
10 |
0.1 |
1.85 |
|
510*300*200 |
37 |
78 |
10 |
0.1 |
1.85 |
|
600*500*200 |
37 |
78 |
10 |
0.1 |
1.85 |
|
650*210*140 |
37 |
78 |
10 |
0.1 |
1.85 |
|
800*300*200 |
37 |
78 |
10 |
0.1 |
1.85 |
|
550*150*250 |
37 |
78 |
10 |
0.1 |
1.85 |

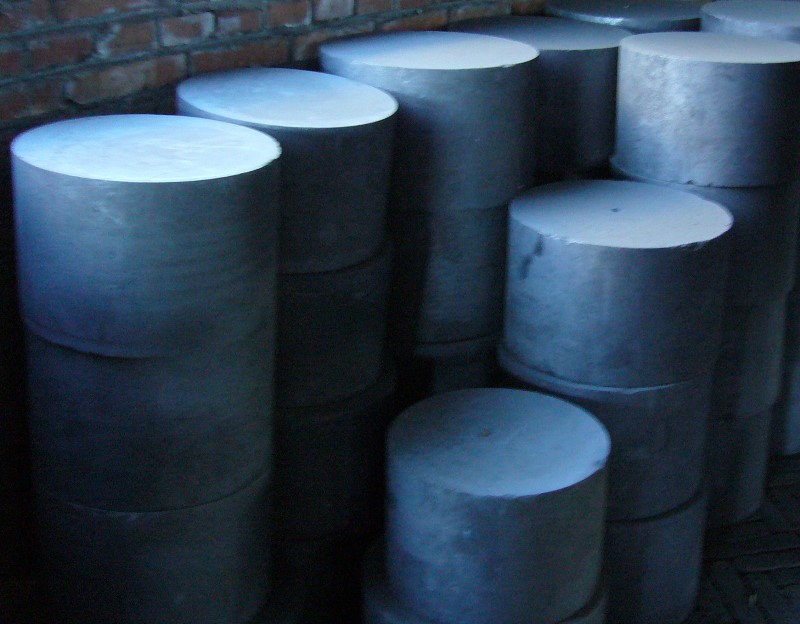

Molded graphite rods, triple impregnated, quadruple baked
|
Size (mm) |
Bending strength≥(Mpa) |
Compressive strength≥(Mpa) |
Resistivity ≤(μ Ω m) |
Ash≤(%) |
Bulk density ≥(g/cm3) |
|
Φ110/106*250 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ130/160*250 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ180/200*250 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ225*250 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ250*300 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ240*410 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ300/330*250 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ350*250/220 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ450*380 |
37 |
78 |
10 |
0.1 |
1.85 |
|
Φ480*380 |
37 |
78 |
10 |
0.1 |
1.85 |
